JIS G3454, G3455, G3456 Carbon steel pipes

Carbon steel pipes for pressure service, high pressure service and high temperature service

Detailed Description

Carbon steel pipes for pressure service, high pressure service and high temperature service .
Standard:
- JIS G3454 Carbon steel pipes for pressure service at an approximate maximum temperature of 350℃.
- JIS G3455 Carbon steel pipes for high pressure service at an approximate maximum temperature of 350℃.
- JIS G3456 Carbon steel pipes for high temperature service at a temperature over 350℃.
Size (mm):
- Outer Dimensions: 19.05mm ~ 114.3mm
- Wall Thickness:2.0mm ~ 14 mm
- Length: max 16000mm
Application: Carbon steel pipes for pressure service, high pressure service and high temperature service.
The main products of steel / steel grade: JIS G3454(STPG370, STPG410), JIS G3455(STS370, STS410, STS480), JIS G3456(STPT370, STPT410, STPT480).
Packing: Bare/bundles/crates/crate protection at the both sides of tubes or as per customers' requirements .
Painting: as requested.

Chemical Compositions(%)

Standard	Grade	C	Si	Mn	P	S
JIS G3454	STPG370	≤0.25	≤0.35	0.30-0.90	≤0.040	≤0.040
JIS G3454	STPG410	≤0.30	≤0.35	0.30-1.00	≤0.040	≤0.040
JIS G3455	STS370	≤0.25	0.10-0.35	0.30-1.10	≤0.035	≤0.035
	STS410	≤0.30	0.10-0.35	0.30-1.40	≤0.035	≤0.035
	STS480	≤0.33	0.10-0.35	0.30-1.50	≤0.035	≤0.035
JIS G3456	STPT370	≤0.25	0.10-0.35	0.30-0.90	≤0.035	≤0.035
	STPT410	≤0.30	0.10-0.35	0.30-1.00	≤0.035	≤0.035
	STPT480	≤0.33	0.10-0.35	0.30-1.00	≤0.035	≤0.035

Mechanical Properties

Standard	Grade	Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation (%)
JIS G3454	STPG370	≥216	≥370	≥30
JIS G3454	STPG410	≥245	≥410	≥25
JIS G3455	STS370	≥216	≥370	≥30
	STS410	≥245	≥410	≥25
	STS480	≥275	≥480	≥25
JIS G3456	STPT370	≥216	≥370	≥30
	STPT410	≥245	≥410	≥25
	STPT480	≥275	≥480	≥25

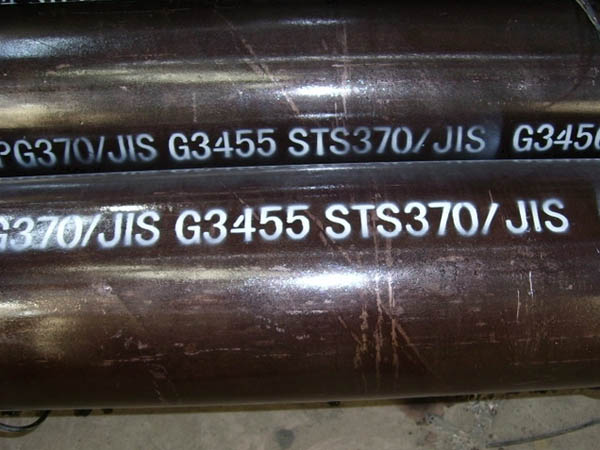

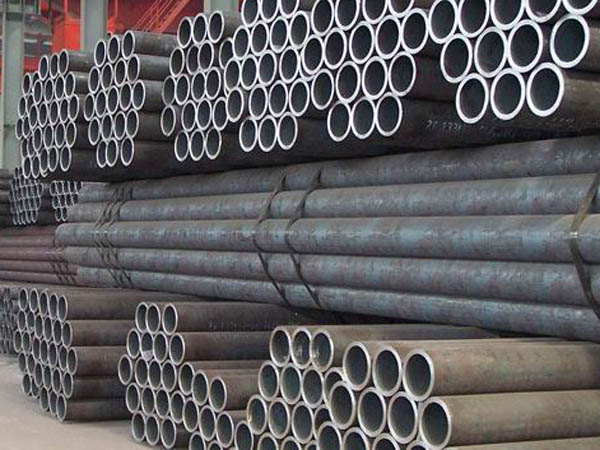

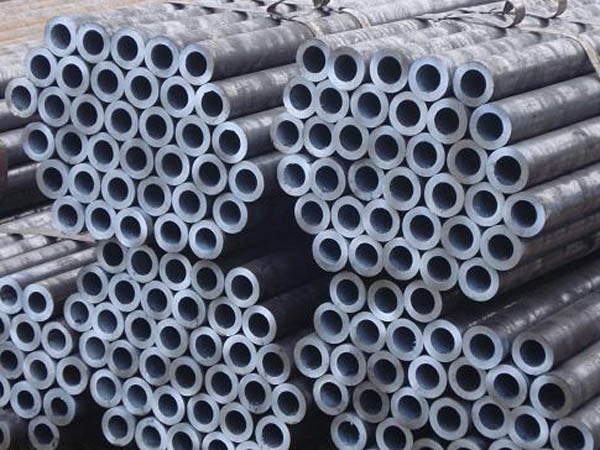

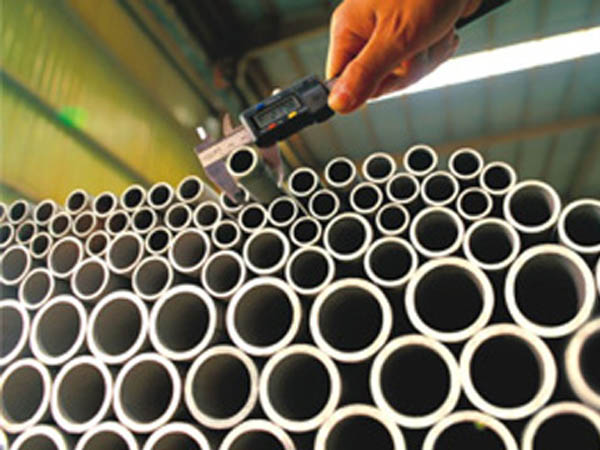

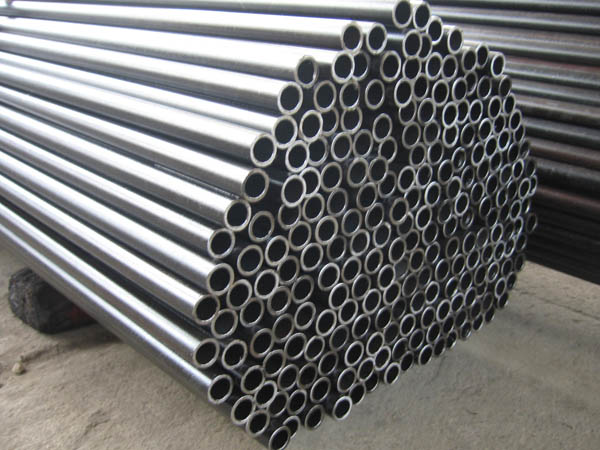

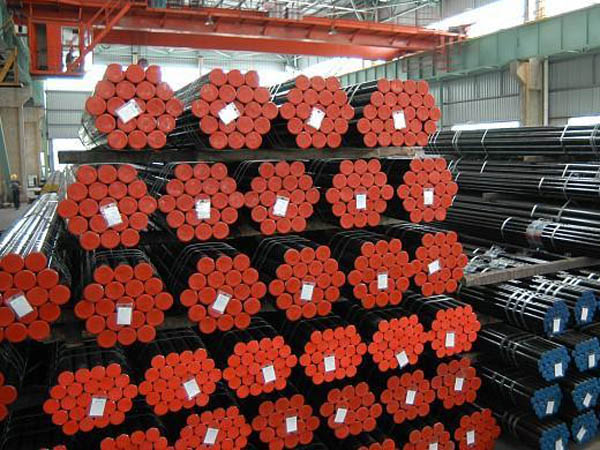

Products Photo Gallery

View or download the PDF catalogue of JIS G3454 G3455 G3456
