ASTM A213/A213M Seamless Alloy-Steel Tubes

Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes.

Detailed Description

• Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes.

• Standards: ASTM A213/213M (ASME SA213/SA213M)
• Size (mm):
  • Outer Dimensions.: 19.05mm ~ 114.3mm
  • Wall Thickness:2mm ~ 14 mm
  • Length: max 17 meters
• Application: Boiler, Superheater, and Heat-Exchanger .
• The main products of steel / steel grade: T11, T12, T22
• Packing: Caps on two ends of each tube/bare packing/bundle packing/crate packing/wooden protection at the both sides of tubes or as requested.

• Inspections and Tests Performed: Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test, No-destructive Test, Hydrostatic Test.
• Surface treatment:Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting.

Chemical Compositions(%)

	C	Si	Mn	P	S	Cr	Mo
T11	0.05-0.15	0.50-1.00	0.30-0.60	≤0.025	≤0.025	1.00-1.50	0.44-0.65
T12	0.05-0.15	≤0.50	0.30-0.61	≤0.025	≤0.025	0.80-1.25	0.44-0.65
T22	0.05-0.15	≤0.50	0.30-0.60	≤0.025	≤0.025	1.90-2.60	0.87-1.13



Mechanical Properties

Grade	Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation (%)
T11	≥170	≥415	20
T12	≥205	≥415	20
T22	≥205	≥415	20

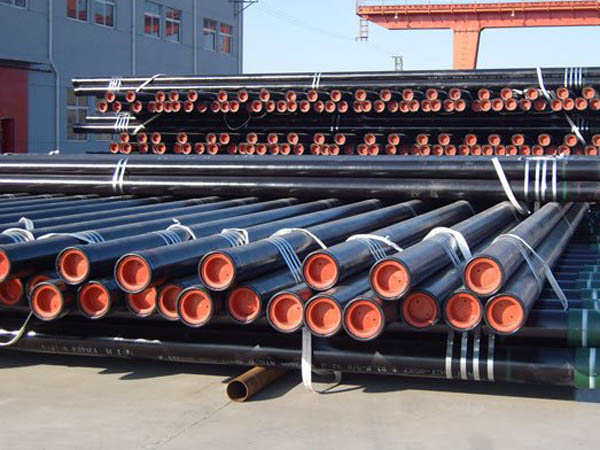

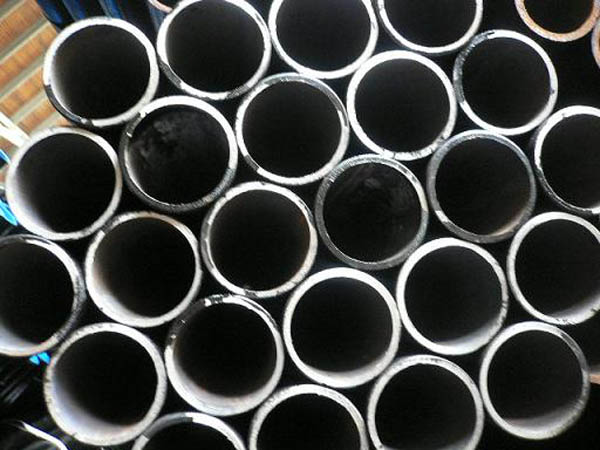

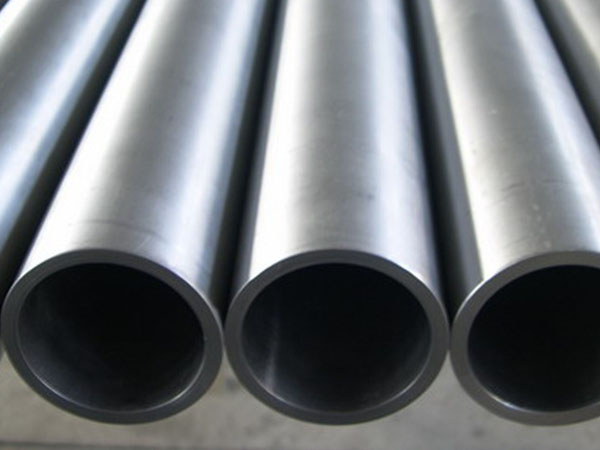

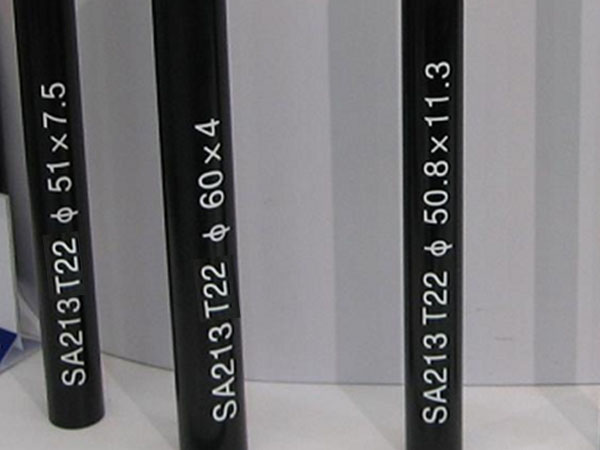

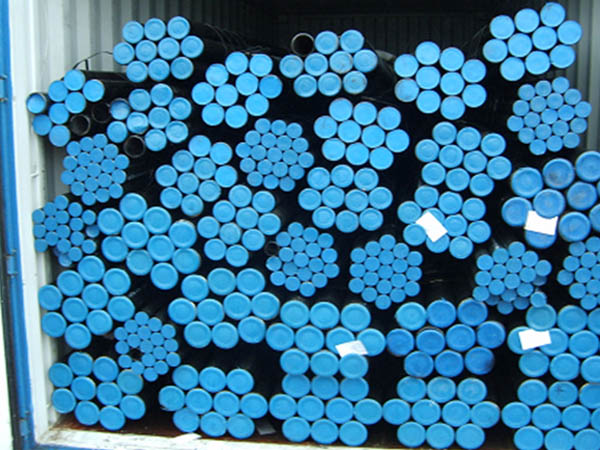

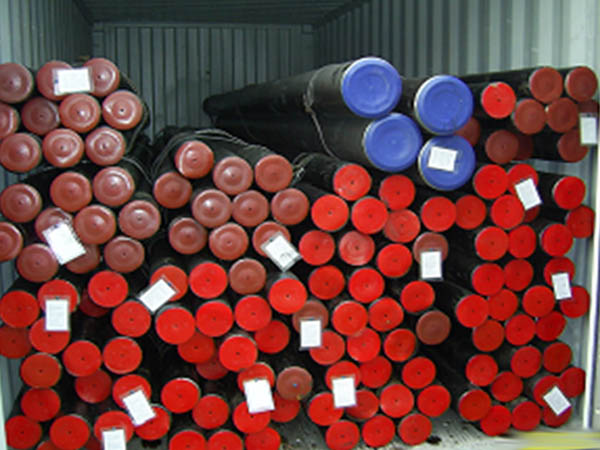

Products Photo Gallery

View or download the PDF catalogue of ASTM-A213
