ASTM A192/A192M Seamless Carbon Steel Boiler Tubes

Seamless Carbon Steel Boiler Tubes for High-Pressure Service - ASTM A192/A192M

Detailed Description

• Seamless Carbon Steel Boiler Tubes for High-Pressure Service.

• Standards: ASTM A192/A192M (ASME SA192/SA192M)
• Size (mm):
  • Outer Dimensions.: 19.05mm ~ 114.3mm
  • Wall Thickness:2mm ~ 14 mm
  • Length: max 16000mm
• Application: Seamless Carbon Steel Boiler Tubes for High-Pressure Service.
• Mill test certificates will be issued according to EN10204/3.1B

• Packing: Bare packing/bundle packing/crate packing/wooden protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.
• Inspection and Test: Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test, No-destructive Test, Hydrostatic Test.
• Surface treatment: Oiled, black painted, shot blasted, hot dipped galvanized or phosphate coating.

• Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.

ASTMA 192M / ASME SA-192M Chemical Compositions(%)

C	Si	Mn	P	S	Cr	Mo	Cu	Ni	V
0.06-0.18	≤0.25	0.27-0.63	≤0.035	≤0.035	/	/	/	/	/



ASTM A 192M / ASME SA-192M Mechanical Properties

Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation (%)
≥180	≥325	≥35

ASTM A192/A192M seamless carbon steel boiler pipe and superheated tube for high-pressure service

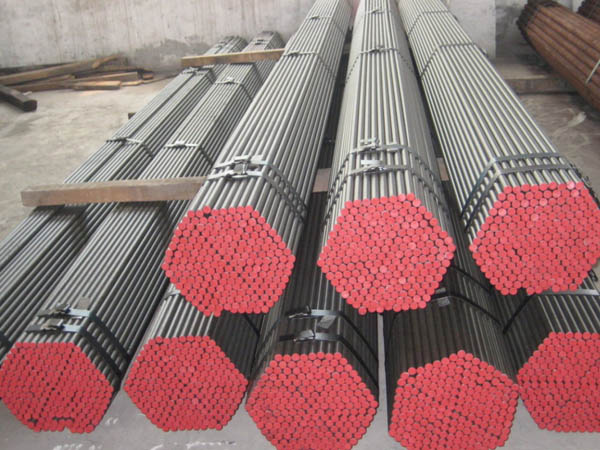

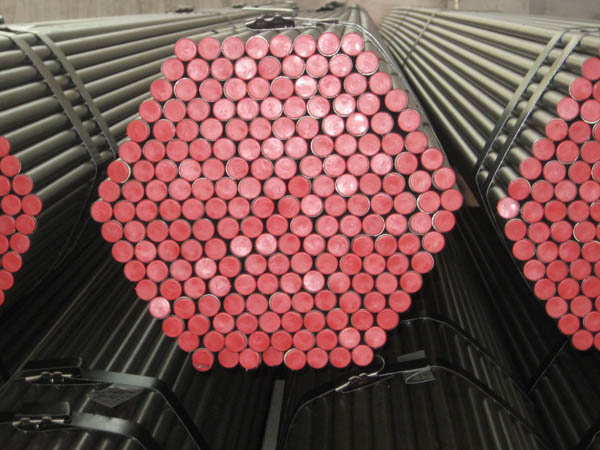

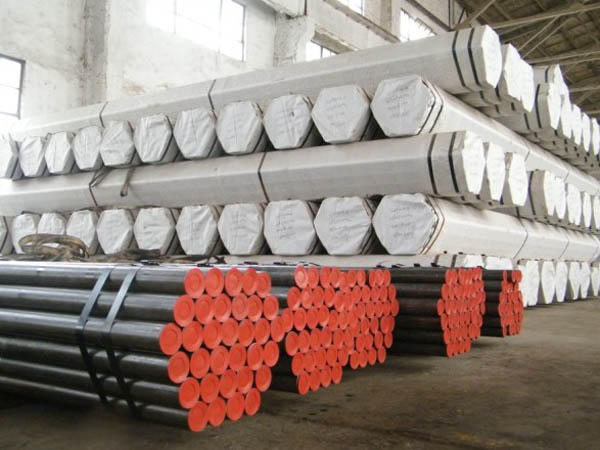

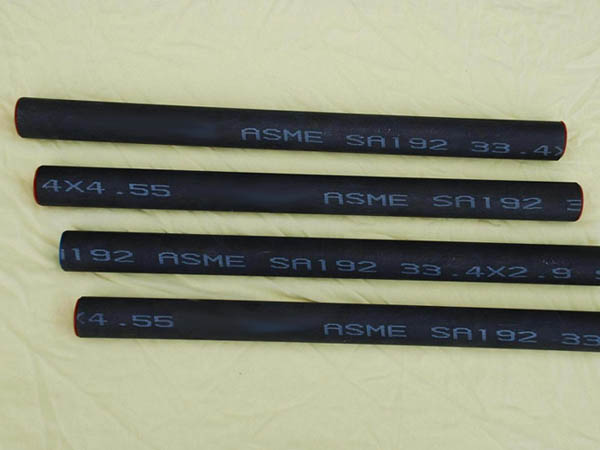

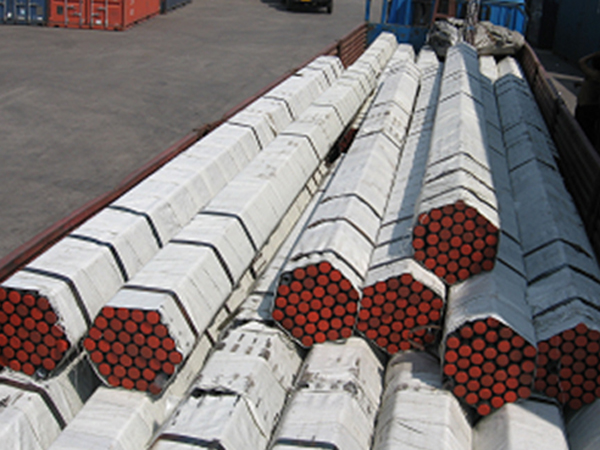

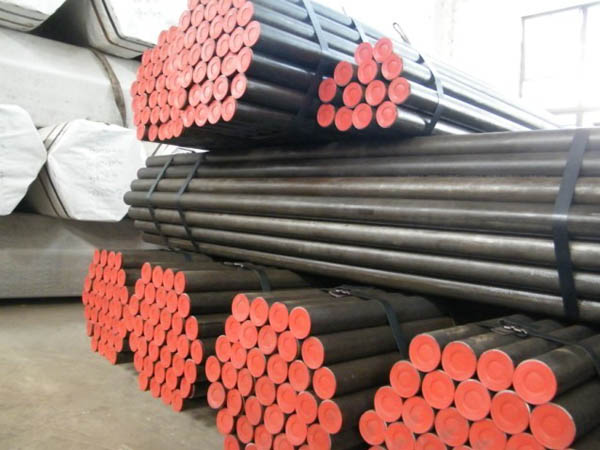

Products Photo Gallery

View or download the PDF catalogue of ASTM-A192
