ASTM A210/A210M Seamless Medium-Carbon Steel Tubes

Seamless Medium-Carbon Steel Boiler and Superheater Tubes.

Detailed Description

  • Seamless Medium-Carbon Steel Boiler and Superheater Tubes.
  • Standards: ASTM A210/210M (ASME SA210/SA210M)
  • Size (mm):
    • Outer Dimensions: 19.05mm ~ 168.3mm
    • Wall Thickness:2.0mm ~ 14 mm
    • Length: max 19000mm
  • Application: It is used for boiler and boiler flue tubes. Including safe end, vault amd supporting tube, and super heater min wall thickness seamless medium--carbon steel tube.
  • Steel grade: Grade A-1; Grade C.
  • Packing: Bare packing/bundle packing/crate packing/wooden protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.
  • Inspection and Test: Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test,No-destructive Test, Hydrostatic Test.
  • Surface treatment: Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting.
  • Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.

Chemical Compositions(%)

  C Si Mn P S Cr Mo Cu Ni V
A-1 ≤0.27 ≥0.10 ≤0.93 ≤0.035 ≤0.035 / / / / /
C ≤0.35 ≥0.10 0.29-1.06 ≤0.035 ≤0.035 / / / / /



Mechanical Properties

Grade Yield Strength (Mpa) Tensile Strength (Mpa) Elongation (%)
A-1 ≥255 ≥415 30
C ≥275 ≥485 30

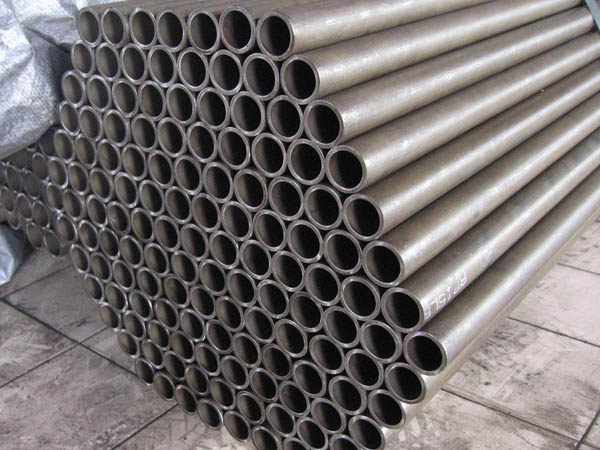

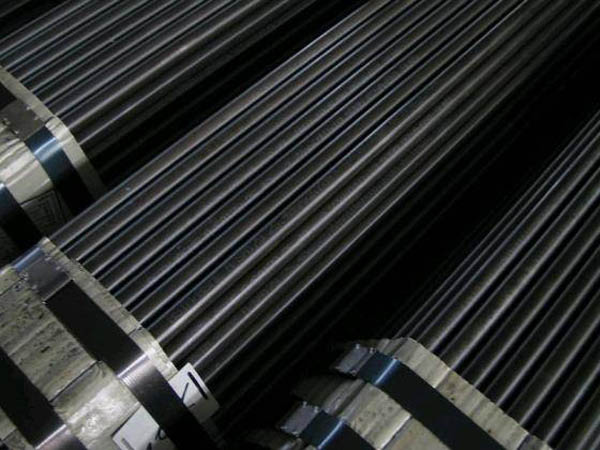

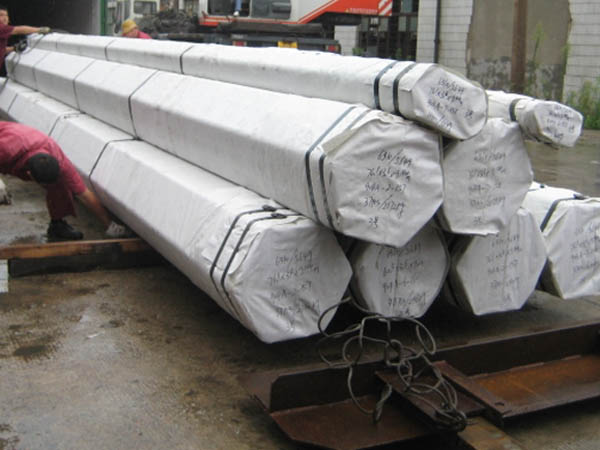

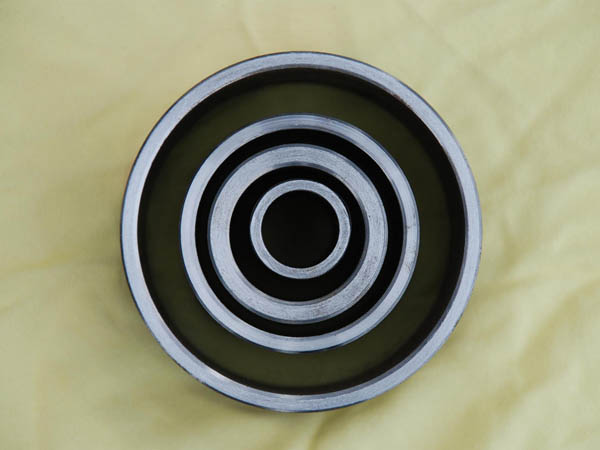

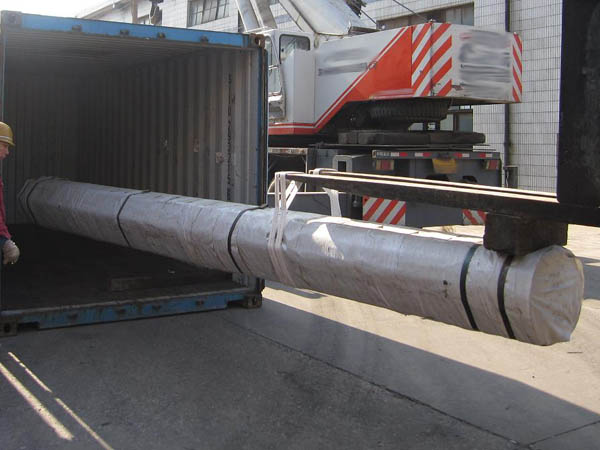

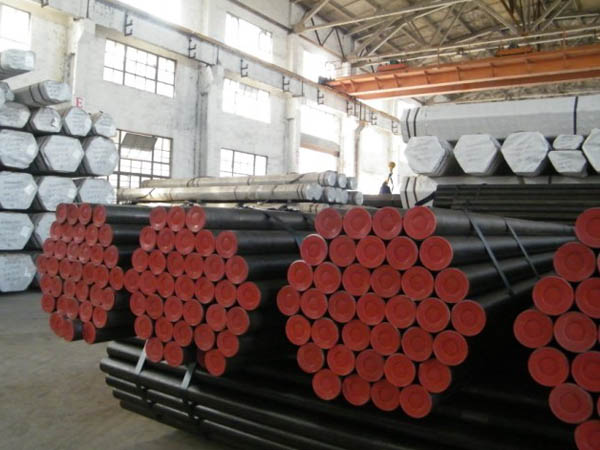

Products Photo Gallery

View or download the PDF catalogue of ASTM-A210
