API5L Steel pipe for pipeline transportation system

Peotroleum and natureal gas industies - Steel pipe for pipeline transportation system.

Detailed Description

• Peotroleum and natureal gas industies - Steel pipe for pipeline transportation system .

• Standard: API SPEC 5L
• Size (mm):
  • Outer Dimensions: 6.0mm ~ 219.0mm
  • Wall Thickness: 1.0mm ~ 30 mm
  • Length: max 12000mm
• Application: gas, water and oil transportation in both oil and natural gas .
• Steel grade: PSL1(B, X42,X46, X52, X56, X60), PSL2(B, X42,X46, X52, X56).
• Packing: Bare/bundles/crates/crate protection at the both sides of tubes or as per customers' requirements .
• Painting: as requested.

PSL 1: Chemical Compositions(%)

Grade	C ≤	Mn ≤	P ≤	S ≤	Si ≤	V ≤	Nb ≤	Ti ≤
B	0.28	1.20	0.030	0.030	-	-	-	-
X42	0.28	1.30	0.030	0.030	-	-	-	-
X46	0.28	1.40	0.030	0.030	-	-	-	-
X52	0.28	1.40	0.030	0.030	-	-	-	-
X56	0.28	1.40	0.030	0.030	-	-	-	-
X60	0.28	1.40	0.030	0.030	-	-	-	-



PSL 2: Chemical Compositions(%)

Grade	C ≤	Mn ≤	P ≤	S ≤	Si ≤	V ≤	Nb ≤	Ti ≤	CEpcm ≤
B	0.24	1.20	0.025	0.015	0.40	c	c	0.04	0.25
X42	0.24	1.20	0.025	0.015	0.40	0.06	0.05	0.04	0.25
X46	0.24	1.40	0.025	0.015	0.40	0.07	0.05	0.04	0.25
X52	0.24	1.40	0.025	0.015	0.45	0.10	0.05	0.04	0.25
X56	0.24	1.40	0.025	0.015	0.45	0.10	0.05	0.04	0.25

Note: c: The sum of the columbium [niobium], and vanadium contents shall not exceed 0.06% except that, by agreement between the purchaser and the manufacturer, an alternative maximum may be established.

PSL 1: Mechanical Properties

Grade	Yield Strength (Mpa)	Tensile Strength (Mpa)
B	≥245	≥415
X42	≥290	≥415
X46	≥320	≥435
X52	≥360	≥460
X56	≥390	≥490
X60	≥415	≥520



PSL 2: Mechanical Properties

Grade	Yield Strength (Mpa)	Tensile Strength (Mpa)
B	245-450	415-760
X42	290-495	415-760
X46	320-525	435-760
X52	360-530	460-760
X56	390-545	490-760

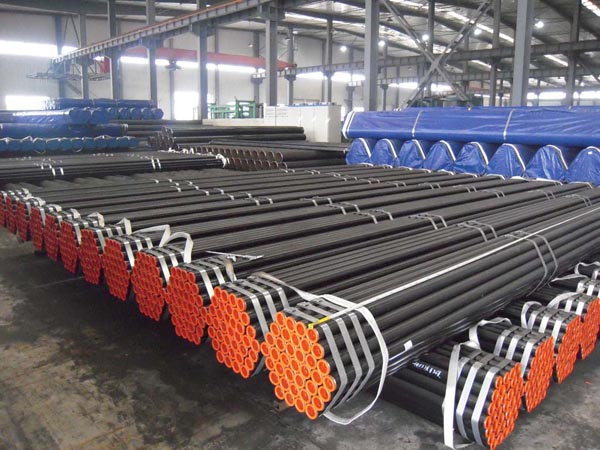

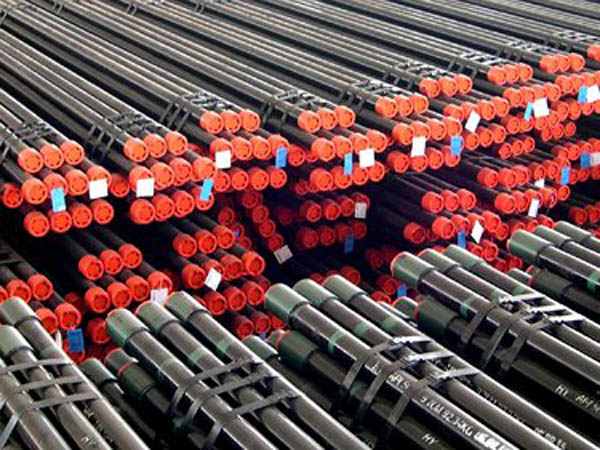

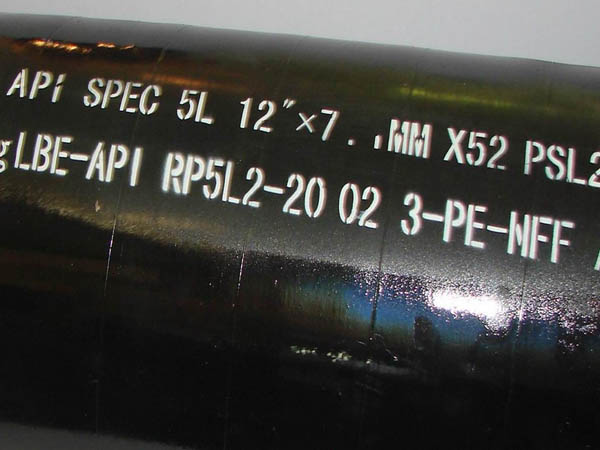

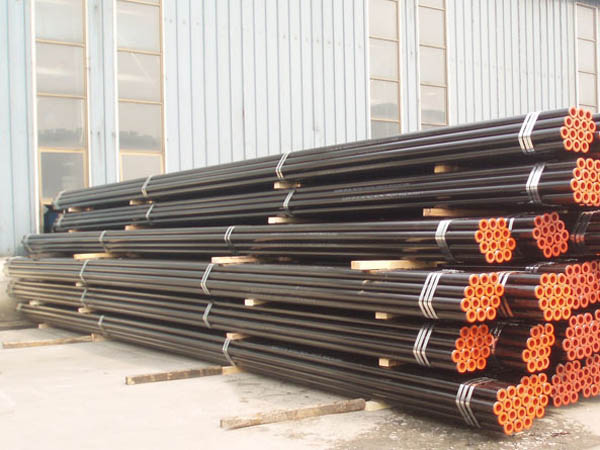

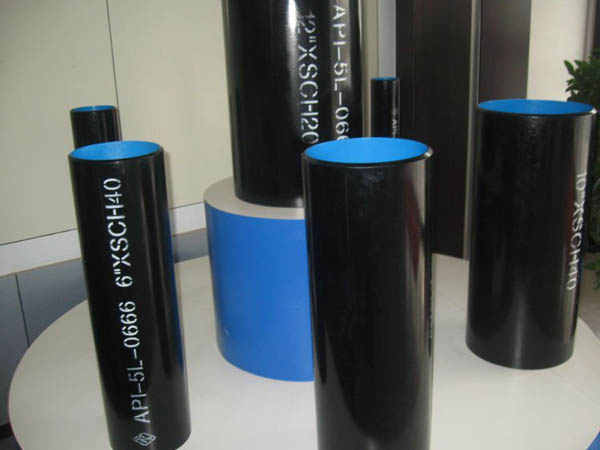

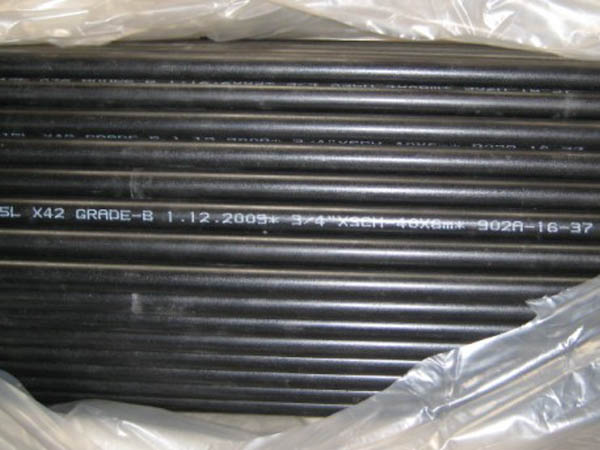

Products Photo Gallery

View or download the PDF catalogue of API 5L
